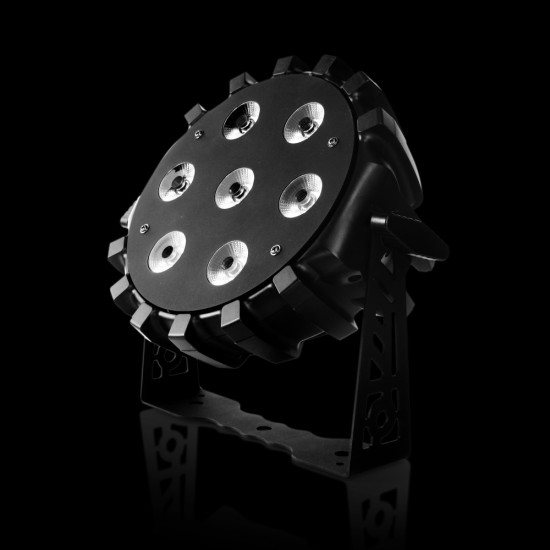

Flash LED PAR 64 SLIM 7x10W RGBW 25° Mk2 prožektorius

Flash LED PAR 64 SLIM 7x10W RGBW Mk2 prožektorius.

16-bit brightness control resolution

Brightness control using two DMX channels allows to achieve an outstanding resolution - 65536 levels of brightness! Thanks to this the device is ideally suited for professional theater installations, stage performances and broadcast TV. The ability to control the brightness in the full range allows to achieve excellent results of smooth changes and enables the precise setting of the desired color from the basic colors.

Brightness control curves

The ability to choose different brightness control curves allows to achieve the effect of a very smooth transition between different levels of brightness with a standard 8-bit control (single DIMMER fader). By choosing curves such as "Log" or "S-Curve" user can achieve more natural, smooth dimming, which is more visible at low DMX values. Additionally, this feature opens up new possibilities in color mixing at low magnitudes.

Dim delay – bulb simulation

Delayed LEDs reaction to the DIMMER fader changes causes even greater smoothing of brightness changes - even with 8-bit controll (single DIMMER fader)! By enabling this feature and selecting one of the specially designed characteristic curves (eg. "S-Curve"), you can obtain a perfect dimming effect with no jump between levels!

The same colors in the entire Flash Professional series

The color palette available in a seperated DMX channel has been calibrated in a way that using various fixtures from Flash Professional series allows to get the same color - regardless of the kind and a power of diode. Thanks to this option you will light the entire space evenly, using the same light's color. The factory calibration of the white color's temperature in various fixtures allows for fast and stable white balance adjustment in television or film application.

Compatibility with professional broadcast TV equipment - PWM 3000Hz

The refresh rate equal to 3000Hz gives an excellent compatibility with a huge palette of professional and amateur cameras and television systems currently used worldwide. Using this fixture in the TV studio or to illuminate the film set you don’t’ need to worry about the blinking picture effect.

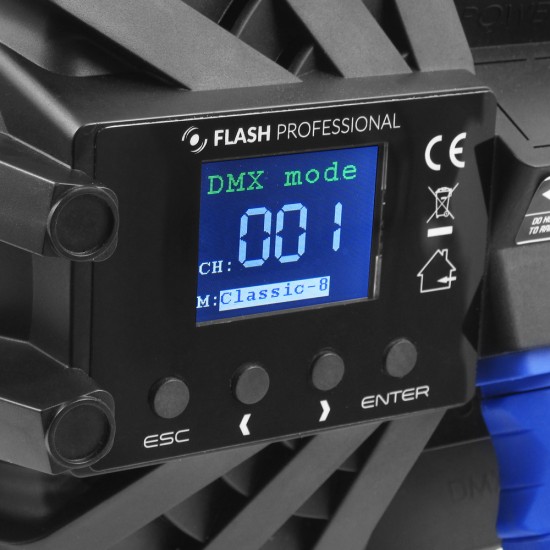

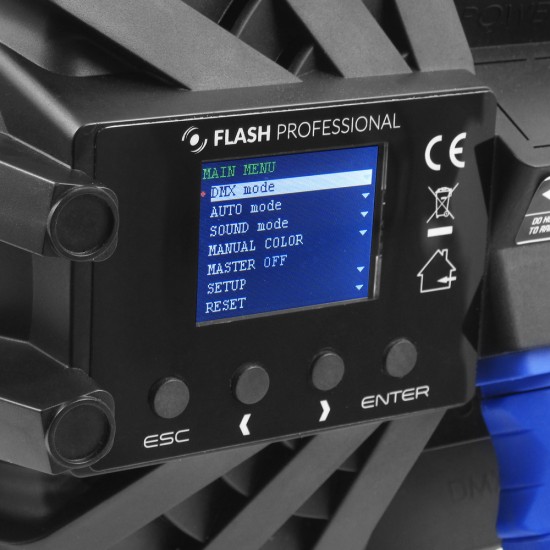

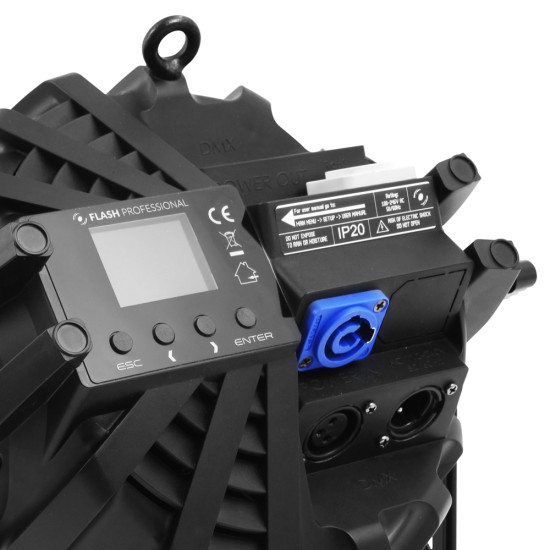

Color LCD 1,8” display
New, clear device menu - a convenient device function control is now available on the bright, color LCD display with a resolution of 160 x 128px. On the display you can easily change the mode, DMX channel, the speed of the built-in macros, enable advanced options and even read the user manual built into the device! Clearly visible DMX channel or macro number allows to inspect the operation of the device from a distance without having to approach him.

DMX channel modes – layouts for everyone

Nine different DMX modes to choose from - ease of use for both those using the basic functions of the fixture as well as for advanced users. "Classic" modes is a well-known D-S-R-G-B-W channel mode. For users who require maximum flexibility we have prepared RGB and RGBW modes, and their 16-bit control equivalents.

• Power consumption: 80W
• Power supply voltage: 100 - 245V
• Voltage frequency: 50/60Hz
• Diode type: 4in1
• Number of diodes: 7
• Diode power: 10W
• Display: LED - 4 characters
• Color: RGBW

• Luminous flux: 4 935lm
• Beam angle (min): 25°
• Beam angle (max): 25°
• Dimming Linear: 0 - 100%
• Flash frequency (min): 1Hz
• Flash frequency (max): 20Hz
• Number of DMX channels: 9 channel modes (3-8 channels)
• DMX standard: DMX 512
• Control interface: 4 buttons
• Operating modes: DMX512, Auto, Sound-controlled, Master / Slave
• Features: 16-bit dimming, various dimming curves, bulb simulation, DMX Signal regeneration, Electronic protection against overheating

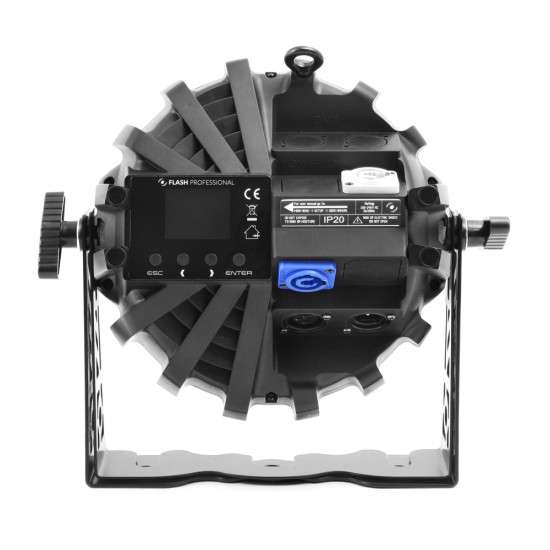

• AC IN: powerCON
• AC OUT: powerCON
• DMX IN: XLR - 3 pin
• DMX OUT: XLR - 3 pin
• IP Rating: IP20
• Housing made: ABS
• Cooling: Active
• Height: 27 cm
• Width: 26 cm
• Depth: 11 cm
• Weight: 1,3 kg
• Weight with packaging: 2,6 kg
